Factory OEM Electric Plug Ball Butterfly Valve Rotork IQT Quarter-turn Electric Actuator IW Series Part-turn Gearboxes

1. Integrated OEM automation package combining Rotork IQT quarter-turn intelligent electric actuator and IW5 part-turn gearbox, purpose-built for ball valves and butterfly valves in industrial flow control systems.
2. Direct-drive IQT actuator supports up to 60 starts per hour for isolation and regulating duties, paired with self-locking IW5 gearbox to amplify output torque for heavy-duty valve operations.
3. Factory pre-calibrated with ISO 5211 standard mounting interface, compatible with most standard valve flanges for quick on-site installation.

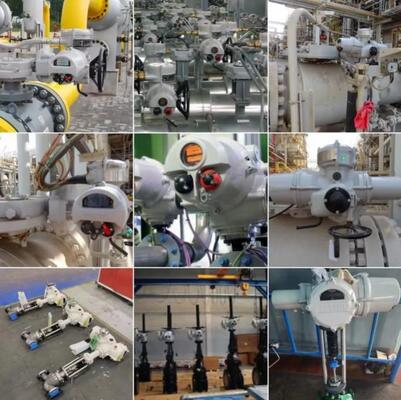

1. Oil & gas: Pipeline isolation, process skids, and offshore platform valve automation systems.
2. Water & wastewater: Municipal treatment plants, pumping stations, and water distribution pipe networks.
3. Power & petrochemical: Thermal power units, refinery processing lines, and chemical fluid control circuits.

1. Battery low/flat alarm: Replace with Rotork-specified 9V lithium battery; cycle power to clear the alarm and re-teach valve limits if power-loss inhibit function is activated
2. Unintended torque trip: Verify torque setting matches actual valve demand; inspect for valve seat jamming or line pressure fluctuation, then adjust torque threshold accordingly.
3. Configuration / local control failure: Reset basic commissioning parameters via the local display; check control selector knob status and recalibrate the position sensing system

1. Rotork IQT3 Perform: Latest generation direct replacement with Bluetooth commissioning and enhanced diagnostics, fully backward compatible with IW5 gearboxes
2. Rotork CK Quarter-turn Actuator: Cost-effective alternative for standard on-off duty, mountable to IW5 gearbox via standard ISO 5211 flange.
3. Rotork IW52 Gearbox: High-torque upgrade of IW5 series with identical mounting footprint, for drop-in replacement when higher torque output is required

1. 100% genuine Rotork components with full traceability; every assembled unit passes factory torque and function testing before delivery.
2. Turnkey customization: Valve-actuator-gearbox integrated assembly, including bore machining, keyway customization and control panel configuration per your requirements.
3. 12-month warranty for the complete package, with free technical guidance for commissioning, daily maintenance and on-site troubleshooting.

1. Standard IQT actuators and IW5 gearboxes in common sizes are in stock, with 6–8 working days lead time for standalone components.
2. Fully assembled valve-actuator packages require 7–15 working days for factory calibration, pressure testing and custom configuration.
3. Global shipping available: standard sea freight to major ports takes 20–35 days; expedited air freight takes 5–10 days.

To get an accurate formal quotation, please provide the following information:

1. Valve details: type (ball/butterfly), nominal size, pressure class, and required output torque.
2. Actuator requirements: power supply voltage, control mode (on-off / modulating), and hazardous area certification (if applicable).
3. Order details: quantity, delivery destination, required accessories (handwheel, position transmitter, bus module), and target delivery date.
