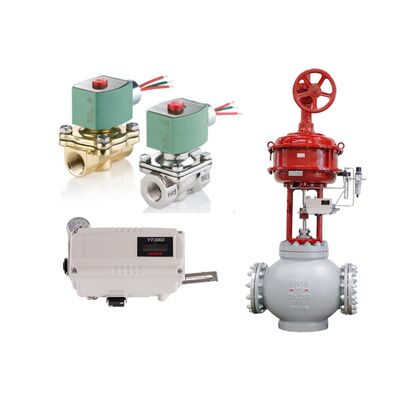

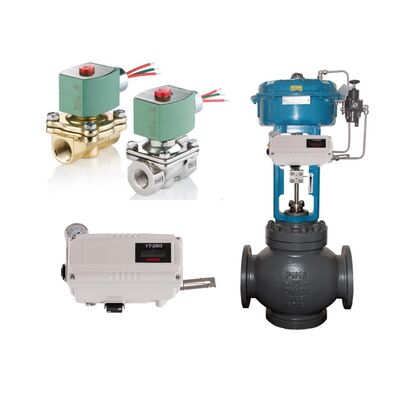

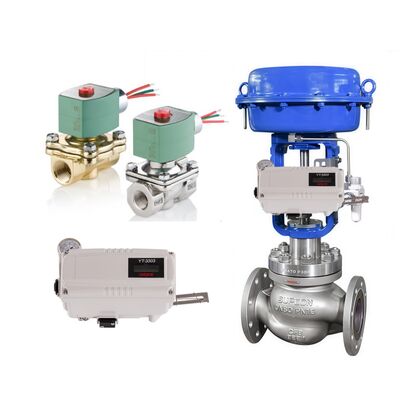

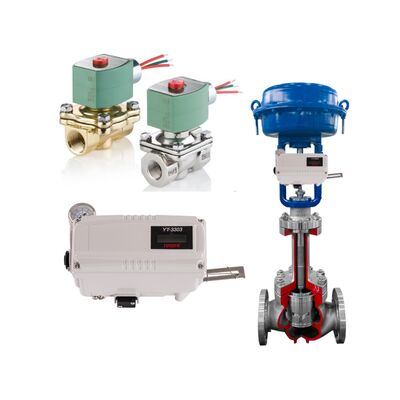

Engineered for maximum value and precision, the Rotork YT-3303 Potentiometer-Type Smart Positioner delivers exceptional valve control with minimal air usage and simple field setup. Its microprocessor-driven Auto-Calibration and flexible PID parameters make it the smart choice for plants seeking reliability without complexity.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA DC |
| Supply Pressure | 0.14–0.7 MPa (1.4–7 bar) |
| Stroke Range | Linear 10–150 mm / Rotary 55–110° |
| Linearity | ±0.5 % F.S. |
| Hysteresis / Sensitivity | ±0.5 % / ±0.2 % F.S. |
| Repeatability | ±0.3 % F.S. |
| Air Consumption | Below 2 LPM @ idle |
| Flow Capacity | 70 LPM |
| Operating Temperature | –30 to +85 °C (standard) / –40 to +85 °C (low temp) |
| Protection Rating | IP66, Type 4X (FM) |
| Communication (Option) | HART 7 |
| Analog Output (Option) | 4-20 mA |
Suited for cost-sensitive projects in general process industries, power plants, water & wastewater treatment, and any facility requiring high-accuracy valve positioning with low maintenance.
Q: How do I perform calibration?
A: Simply press the Auto-Calibration button — the positioner completes the process automatically in minutes.
Q: Can I customize the valve response curve?
A: Yes — select Linear, Quick Open, Equal Percentage, or create your own 5- or 18-point characterization.
Q: What is the typical air consumption?
A: Less than 2 LPM at idle, helping plants achieve significant energy savings.
