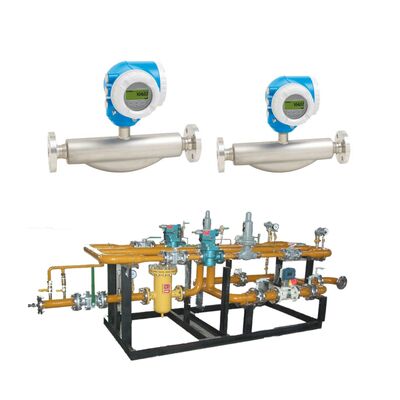

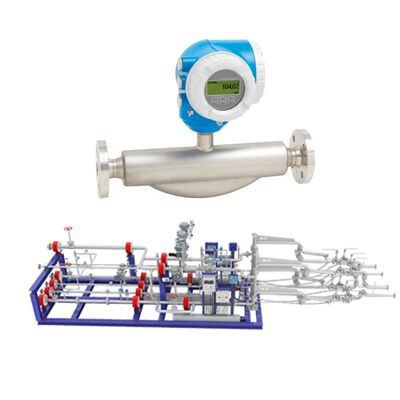

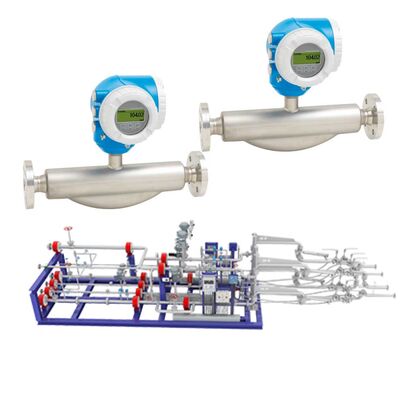

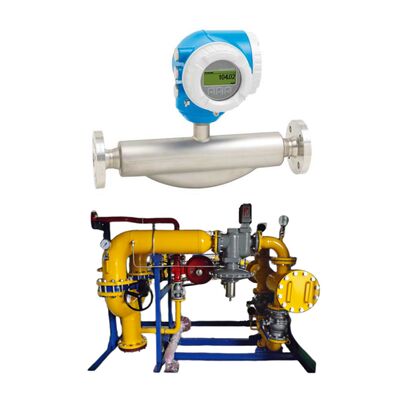

The Endress+Hauser Proline Promass F 300 8F3B40 is a high-performance Coriolis flowmeter engineered for the most demanding industrial applications. Combining premium measurement accuracy with exceptional robustness, its compact, dual-compartment transmitter provides easy access and full process transparency. Ideal for multivariable measurement of mass flow, density, and temperature in a single device.
| Parameter | Specification |
|---|---|
| Measuring principle | Coriolis |
| Max. measurement error (mass flow, liquid) | ±0.10 % (standard) / ±0.05 % (PremiumCal option) |
| Volume flow (liquid) | ±0.10 % |
| Mass flow (gas) | ±0.25 % |
| Density (liquid) | ±0.0005 g/cm³ |
| Measuring range | 0 to 2 200 000 kg/h (0 to 80 840 lb/min) |
| Medium temperature | –50 to +150 °C (standard); –196 to +350 °C (options) |
| Max. process pressure | PN 100, Class 600, 63K |
| Nominal diameter | DN 8 to 250 (⅜" to 10") – 8F3B40 series |
| Wetted materials | 1.4539 (904L), 1.4404 (316/316L), Alloy C22 |
| Transmitter housing | AlSi10Mg coated or 316L stainless steel |
| Degree of protection | IP66/67, NEMA 4X; IP69 (optional) |
Ideal for chemical, oil & gas, food & beverage, pharmaceutical, and life sciences industries where highest accuracy and process safety are critical. Suited for liquids, gases, and cryogenic applications under harsh or fluctuating conditions.
Q: What makes the Promass F 300 different from standard flowmeters?
A: It offers premium ±0.05 % mass flow accuracy, Heartbeat Technology for self-verification, and zero straight-run requirements.
Q: Can it measure both liquids and gases?
A: Yes, with excellent performance on both.
Q: How does Heartbeat Technology help?
A: It enables traceable verification without process interruption and extends calibration cycles.
Q: Is it suitable for hazardous areas?
A: Yes, with ATEX, IECEx, cCSAus, and other global approvals.
