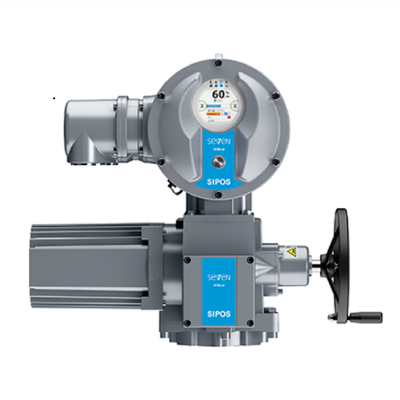

The Bypass Valve with SIPOS 7 Electric Actuator is a high-precision flow control solution combining a robust globe or butterfly bypass valve with the advanced SIPOS 7 variable-speed electric actuator. Featuring frequency-controlled positioning with ±0.1% accuracy and integrated fieldbus communication (Profibus DP, Modbus RTU), it enables seamless integration into modern DCS and SCADA systems. The SIPOS 7 offers soft start/stop, emergency shutdown (ESD), and comprehensive diagnostics via its color graphic display. Ideal for turbine bypass, pump minimum flow, and pressure reduction stations in power plants, water networks, and chemical processes, this assembly ensures reliable, energy-efficient operation with minimal maintenance.
| Parameter | Specification |
|---|---|
| Actuator Model | SIPOS 7 |
| Torque Range | 50 to 25,000 Nm |
| Positioning Accuracy | ±0.1% |
| Speed Range | 0.1 to 100% (variable) |
| Power Supply | 3-phase 400 VAC, 50/60 Hz |
| Communication | Profibus DP, Modbus RTU, HART |
| Protection Class | IP68 |
| Temperature Range | -30°C to +70°C |
| Valve Sizes | DN50 to DN1200 |
| Certifications | CE, ATEX, SIL 2 capable |
Frequency inverter adjusts motor speed for smooth valve movement.
Yes, Profibus DP, Modbus RTU, and HART.
SIL 2 capable with proper configuration.
Yes, IP68 rated for submersion.
Globe, butterfly, or gate per application.
For more information about the Bypass Valve with SIPOS 7, pricing, or to request a demo, contact our team:
