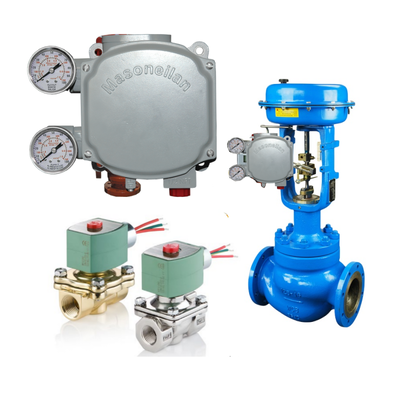

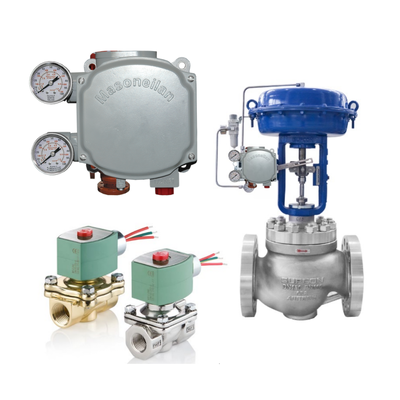

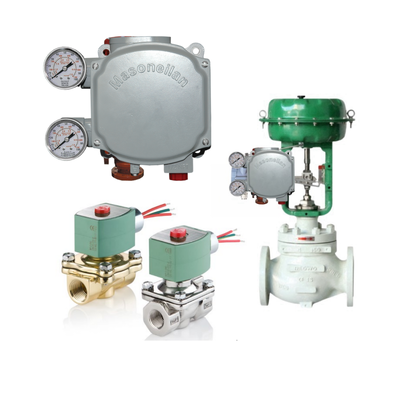

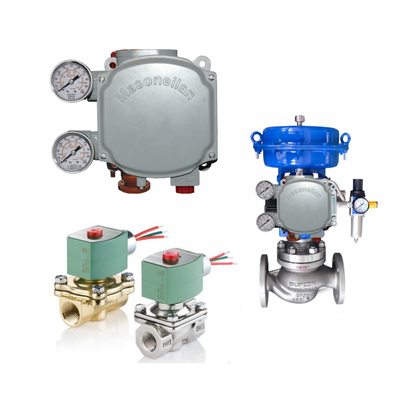

The Masoneilan SVI1000 is a user-friendly digital valve positioner, engineered for single-acting pneumatic valves with a simple 4-20 mA HART interface. Featuring a one-button-one-function local interface and magnetic sensing technology, it simplifies commissioning and operation while providing accurate positioning. Its compact metal housing and universal design make it easy to install on linear or rotary valves, reducing setup time and operational complexity.
| Parameter | Details |
|---|---|
| Housing Material | Low copper chromated aluminum (ASTM A360) |
| Protection Rating | IP66 / NEMA 4X |
| Weight | 2 kg (4.5 lb) |
| Input Power/Signal | 3.2-24 mA; Compliance: 9 VDC at 20 mA, 11 VDC at 4 mA |
| Optional Outputs | Two solid-state switches (1A/30 VDC); 4-20 mA position retransmit |
| Electrical Connection | One 1/2 NPT female |
| Ambient Temperature | -40 to +85 °C (-40 to +185 °F) |
| Humidity | 100% RH non-condensing |
| Communication | HART Protocol Rev 5/7 |
| Approvals | FM, FMC, ATEX, IEC, CE |
