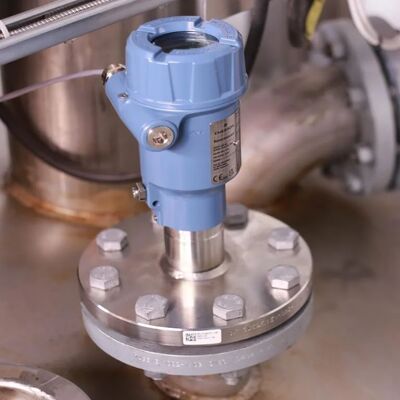

Rosemount 3408 Radar Level Transmitter 80GHz Non Contact Liquid Level Measurement Industrial Smart Sensor

1
MOQ
US $800.00 - 850.00/ Unit
ราคา
Rosemount 3408 Radar Level Transmitter 80GHz Non Contact Liquid Level Measurement Industrial Smart Sensor
คุณสมบัติ คลังภาพ รายละเอียดสินค้า การให้คะแนนและความคิดเห็น ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
ความแม่นยำ: ± 2 มม
แหล่งจ่ายไฟ: 12-35 VDC (30 VDC ในการติดตั้งที่ปลอดภัยจากภายใน)
ความถี่ในการวัด: 80 กิกะเฮิร์ตซ์
ประเภทเสาอากาศ: ซีลกระบวนการ, เสาอากาศเลนส์, เสาอากาศเลนส์ ATAP
อุณหภูมิในการทำงาน: -76 ถึง 392 °F (-60 ถึง 200 °C)
โปรโตคอลการสื่อสาร: 4-20mA HART7,ไร้สายHAR
อัตราการอัปเดตไร้สาย: 4 วินาที สูงสุด 60 นาที ผู้ใช้สามารถเลือกได้
ข้อมูลพื้นฐาน
สถานที่กำเนิด: สหรัฐอเมริกา
ชื่อแบรนด์: Rosemount
หมายเลขรุ่น: 3408
การชำระเงิน
รายละเอียดการบรรจุ: กล่องกระดาษแข็ง/ลังไม้
เวลาการส่งมอบ: 6~8 สัปดาห์
เงื่อนไขการชำระเงิน: ที/ที
สามารถในการผลิต: 1,000 หน่วยต่อปี
รายละเอียดสินค้า
Product Overview

The Rosemount 3408 is a compact 80 GHz FMCW radar level transmitter designed for continuous level measurement in tanks and vessels. It offers high accuracy even in small nozzles and challenging conditions like foam, condensation, or agitation. The Bluetooth interface makes setup and troubleshooting fast and safe without opening the cover.

Features
  • 80 GHz narrow beam – ideal for small nozzles and internal obstructions
  • Smart Echo Supervision – ignores false echoes from foam or condensation
  • Bluetooth wireless access – configure and monitor from phone/tablet
  • Remote proof-test capability – verify safety loops from control room
  • All-PTFE wetted parts option – handles corrosive liquids
  • Heartbeat Technology – quick verification without removal
Technical Specifications
Measuring Principle: FMCW 80 GHz radar
Accuracy: ±2 mm (standard)
Measuring Range: Up to 20 m (65 ft)
Process Temperature: -40 °C to +150 °C (-40 °F to +302 °F)
Process Pressure: -1 to +20 bar (-14.5 to +290 psig)

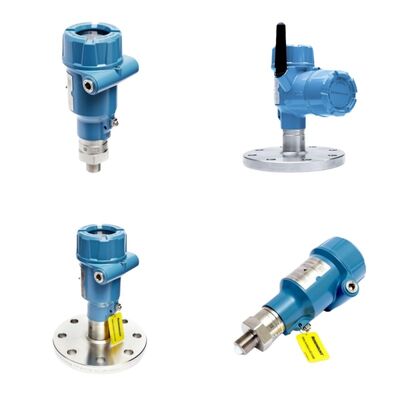

Antenna Types: Lens or cone
Output: 4–20 mA HART
Protection Class: IP66/67, NEMA 4X
Approvals: ATEX, IECEx, FM, CSA, SIL 2 capable
Applications
  • Small process tanks and vessels
  • Corrosive liquid storage
  • Foaming or condensing applications
  • Overfill prevention and inventory
FAQ
Q: Can I configure it without opening the cover? A: Yes – full Bluetooth access from a phone or tablet.
Q: How accurate in foam? A: Smart Echo Supervision filters false echoes effectively.
