Brand New Industrial Level Gauge Water Meter Sensor Rosemount 5900S Radar Level Gauge System for Tanks

Product Overview

The Rosemount 5900S is a high-performance non-contact radar gauge for large storage tanks. It offers custody transfer accuracy and redundancy options (2-in-1 or 2-in-2) to meet strict safety and metrology requirements. Terminals and refineries use it for precise inventory and overfill protection in atmospheric and low-pressure tanks.

Features

• Custody transfer accuracy (±0.5 mm)
• Redundant 2-in-1 or 2-in-2 configurations
• Parabolic or horn antenna for best signal
• Integrated pressure measurement option
• SIL 2/3 certified for overfill safety
• No moving parts – low maintenance
• WirelessHART option for remote monitoring

Technical Specifications

• Measuring Principle: FMCW radar
• Accuracy: ±0.5 mm (custody transfer)
• Measuring Range: Up to 70 m (230 ft)
• Operating Frequency: 10 GHz or 26 GHz
• Process Temperature: -40 °C to +200 °C
• Process Pressure: Vacuum to 50 bar
• Output: 4–20 mA HART, Modbus, WirelessHART
• Antenna: Horn, parabolic, still-pipe
• Approvals: OIML R85, API MPMS, SIL 2/3

Applications

• Large crude oil storage tanks
• Floating roof tank gauging

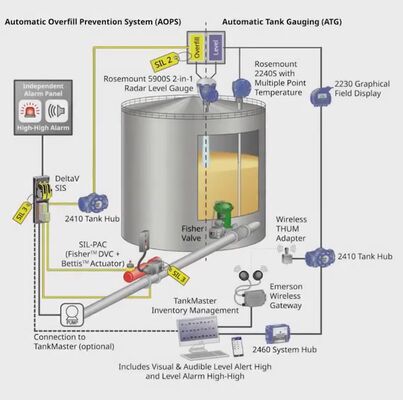

• Overfill prevention systems
• Terminal inventory management

FAQ Q: Does it support redundancy? A: Yes – 2-in-1 and 2-in-2 versions available.

Q: Works in floating roof tanks? A: Yes – parabolic antenna recommended.
