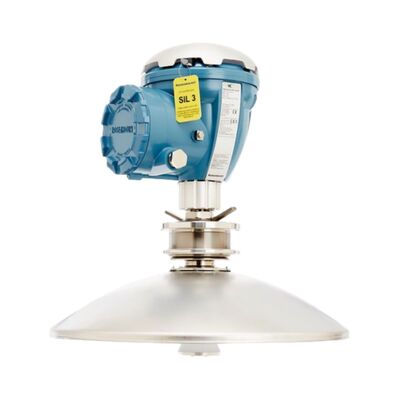

High Accuracy Emerson Rosemount 5900S Tank Radar Level Gauge ±0.5mm Industrial Radar Level Transmitter

Product Overview

The Rosemount 5900S is a non-contact radar level gauge designed specifically for custody transfer, inventory control, and overfill prevention in storage tanks. It uses FMCW (Frequency Modulated Continuous Wave) technology with a very narrow beam to achieve the highest accuracy required for legal metrology. Many tank farms and terminals use it because it meets OIML R85 and API standards and needs almost no maintenance.

Features

• Highest accuracy for custody transfer (±0.5 mm or better)
• Narrow radar beam – works in tanks with many internal structures
• Integrated pressure sensor option
• Antenna types: Horn, parabolic, still-pipe
• 2-in-1 or 2-in-2 versions (redundant measurement)
• SIL 2/3 certified safety
• Wireless or wired communication

Technical Specifications

• Measuring Principle: FMCW radar
• Accuracy: ±0.5 mm (custody transfer)
• Measuring Range: Up to 70 m (230 ft)
• Operating Frequency: 10 GHz or 26 GHz
• Process Temperature: -40 °C to +200 °C (-40 °F to +392 °F)
• Process Pressure: Vacuum to 50 bar (725 psi)
• Output: 4–20 mA HART, Modbus, WirelessHART
• Antenna Types: Horn, parabolic, still-pipe array
• Approvals: OIML R85, API MPMS Ch. 3.1B, SIL 2/3

Applications

• Custody transfer in oil & gas terminals
• Inventory tank gauging

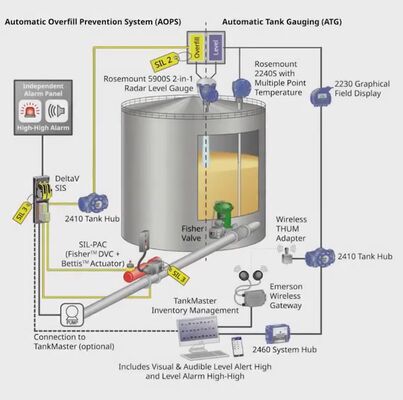

• Overfill prevention (high-high level)
• Bulk storage tanks (crude, gasoline, chemicals)

FAQ

Q: Is it OIML approved?

A: Yes – meets OIML R85 for custody transfer.

Q: How narrow is the beam?

A: Very narrow – works in tanks with agitators or columns.
