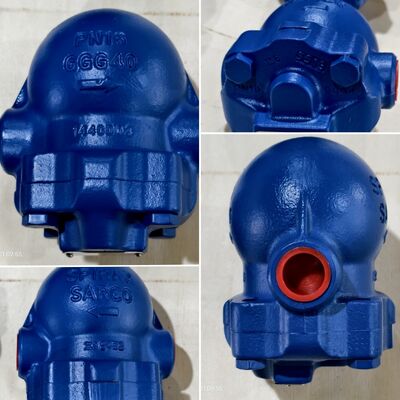

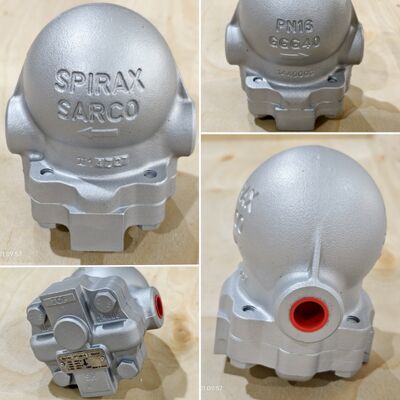

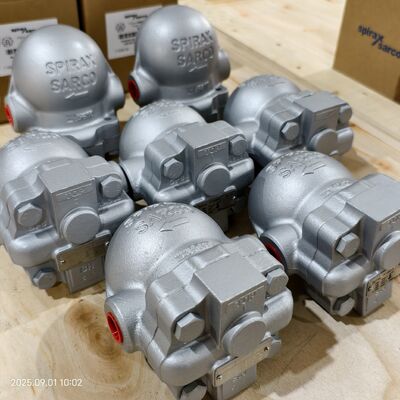

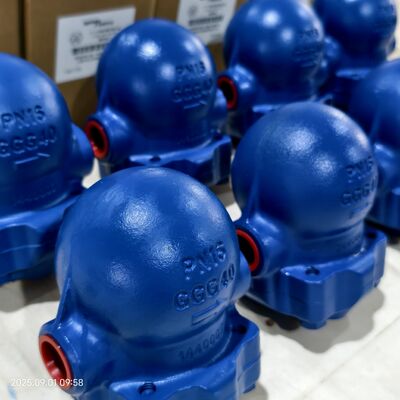

The Spirax Sarco FT14 is a classic ball float steam trap featuring an SG iron (ductile iron) body with stainless steel internals and a built-in automatic air venting mechanism. It discharges condensate continuously at steam temperature while efficiently handling non-condensable gases through its balanced pressure thermostatic air vent. This trap allows easy in-line maintenance without removing it from the pipeline.
Body Material: SG iron (ductile iron). Working Internals: Stainless steel. Connection Types: Screwed (BSP T Rp ISO 7-1) or flanged (PN16, ASME 150, etc.). Sizes: ½" to 2" (DN15 to DN50). Pressure Ranges: Available with 4.5 bar, 10 bar, or 14 bar maximum differential pressure (ΔPMX). Maximum Operating Temperature: Up to 220°C (depending on pressure). Air Vent Capsule: BP99/32, suitable for 150°C superheat at 0 bar g. Installation: Float arm horizontal, flow as indicated on body (adjustable direction).
Well-suited for process equipment controlled by modulating temperature valves, unit heaters, air heating coils, heat exchangers, and steam main drip stations across various industries.
Q: Can the flow direction be changed? A: Yes, it can be adjusted on site as needed.
Q: Does it handle superheated steam? A: The air vent capsule supports up to 150°C superheat at low pressure.
Q: Is maintenance easy? A: Yes, all internals can be serviced without removing the trap from the line.
Q: What about steam lock issues? A: An optional adjustable needle valve provides steam lock release (SLR).
Q: Is it suitable for vertical flow? A: Standard models are for horizontal connections; consult for specific variants.
Email: tracychen@gbsxj.com
WhatsApp: +8617799852698
Wechat: 13032169170
Consider the FT14HC for high-capacity needs in 1" size, or the FTGS14 series for stainless steel body options in similar applications.
