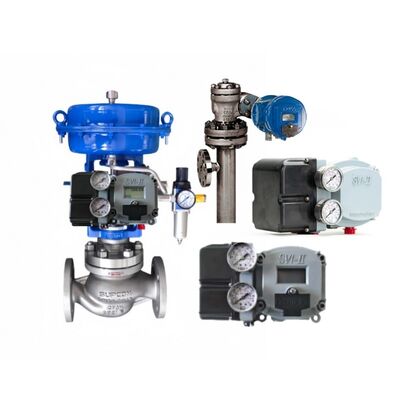

Masoneilan SVI II AP Digital Valve Positioner Masoneilan 12400 Series Digital Level Transmitter Pneumatic Level Controllers

The SVI II AP is advanced performance digital positioner with HART protocol. It controls pneumatic actuators using a two-wire 4-20mA signal and provides local display/pushbuttons even in hazardous areas. It's known for non-contact sensing, quick commissioning, and upgradable diagnostics – a common choice for reliable valve positioning in process industries.

• Non-contact position feedback – no mechanical wear
• Local explosion-proof LCD and pushbuttons
• Auto-tune and auto-stop for fast setup
• Five pressure sensors for continuous monitoring
• Field upgradable from standard to advanced diagnostics
• Low copper aluminum or stainless steel housing
• High flow option for large actuators

• Input: 4-20mA DC, 450 Ohms resistance
• Communication: HART Revision 5 or 7
• Supply Pressure: Single-acting 20-100 psi; Double-acting 20-150 psi
• Ambient Temperature: -50°C to +85°C
• Accuracy: ±0.5% full span
• Linearity: ±1.0% full scale
• Hysteresis + Deadband: ±0.3% full span
• Repeatability: ±0.3% full span
• Enclosure: IP66 / NEMA 4X
• Materials: Aluminum (standard) or 316L stainless steel (optional)

• Control valves in severe service
• Retrofit of analog positioners
• Hazardous area valve control
• Processes requiring diagnostics and fast response
