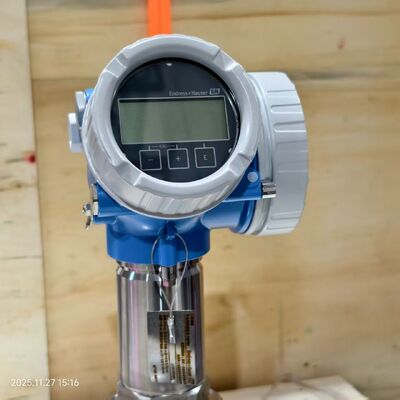

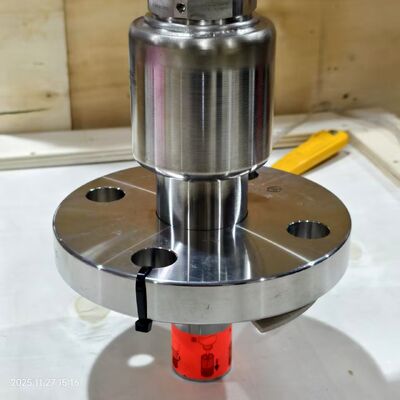

In steam boilers and high-pressure separators, most level devices can't handle the heat and pressure. The FMP54 can. It's the guided radar with a special ceramic-graphite seal and gas-tight feedthrough that works reliably up to 400 °C and 400 bar. Plants in power, oil & gas, and chemicals have been using it for years on feedwater drums, HP separators, and toxic media like ammonia.
| Measuring principle | Guided radar (TDR) |
| Process temperature | -196 °C to +450 °C (special versions) |
| Process pressure | Vacuum to 400 bar |
| Accuracy | ±2 mm |
| Measuring range | Rod: up to 10 m, Rope: up to 45 m, Coaxial: up to 6 m |
| Output | 4–20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Approvals | SIL 2/3, ATEX, IECEx, etc. |
Q: Does it work in saturated steam?
A: Yes – automatic compensation keeps readings accurate.
Q: How do I verify it's still good?
A: Heartbeat verification – quick test with report.
Q: Probe elongation in heat?
A: Special HT probes avoid drift.
