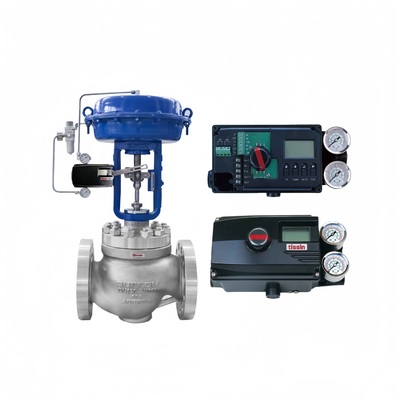

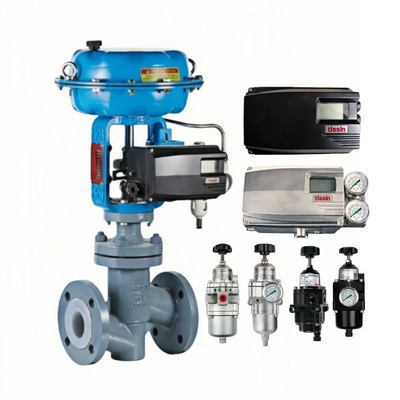

The Tissin TS800 Smart Valve Positioner is a compact, high-performance electro-pneumatic device designed to accurately control valve stroke in response to 4-20 mA input signals from control panels, DCS, or calibrators. Featuring advanced auto-tuning and self-calibration capabilities, it ensures optimal positioning for linear and rotary actuators with minimal hysteresis. With a robust IP66 enclosure and optional explosion-proof configurations, the TS800 is ideal for chemical, water treatment, and oil & gas industries. Its low air consumption and simple installation make it a cost-effective solution for process optimization and reliable operation.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA DC (impedance 500 Ω) |
| Supply Pressure | 0.14–0.7 MPa (1.4–7 bar) |
| Stroke Range | Linear: 10–150 mm; Rotary: 0–90° |
| Air Connection | PT1/4, NPT1/4 |
| Gauge Connection | PT1/8, NPT1/8 |
| Conduit Entry | G(PF)1/2, NPT1/2, M20 |
| Temperature Range | -20°C to +80°C |
| Explosion Proof | Ex ia IIC T5/T6 (optional) |
| Power Consumption | less than 1 W |
| Weight | 1.5 kg |
4-20 mA DC with 500 Ω impedance.
Yes, optional Ex ia IIC T5/T6 certification.
Linear 10–150 mm, rotary 0–90°.
PT1/4 or NPT1/4 threads.
Yes, less than 1 W consumption.
For more information about the Tissin TS800 Smart Valve Positioner, pricing, or to request a demo, contact our team:
