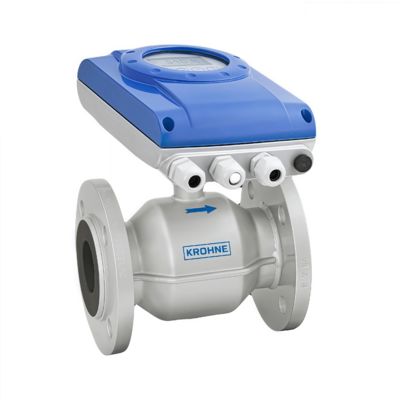

The KROHNE OPTIFLUX 2050 is a certified electromagnetic flowmeter for potable water and distribution systems. With polyurethane liner and full drinking water approvals (NSF/ANSI 61, WRAS, ACS, KTW), it ensures safe, accurate measurement. The virtual reference eliminates grounding rings, while the IFC 050 converter offers simple push-button setup and 4-20 mA output. Compact and lightweight, it is ideal for new installations or retrofits in water treatment plants, pumping stations, and meter districts with ±0.3% accuracy and IP68 protection for buried service.
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Size Range | DN 25 to DN 600 |
| Accuracy | ±0.3% o.r. ± 2 mm/s |
| Conductivity | ≥ 5 µS/cm |
| Process Temperature | 0°C to +80°C |
| Pressure Rating | PN 16 / Class 150 |
| Liner | Polyurethane |
| Outputs | 4-20 mA, Pulse, Status |
| Protection | IP68 |
| Certifications | NSF/ANSI 61, WRAS, ACS, KTW |
Yes, NSF/ANSI 61 for potable water.
Yes, IP68 rating allows direct burial.
Polyurethane, certified for drinking water.
5D upstream, 2D downstream recommended.
Not standard; upgrade to IFC 100 for HART.
Contact our team for inquiries about the OPTIFLUX 2050 drinking water version, pricing, or to schedule a demo:
