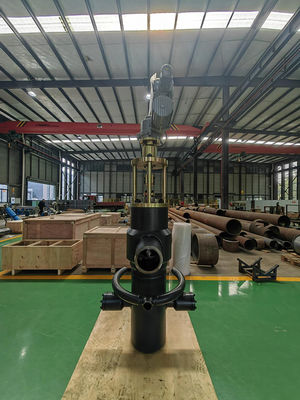

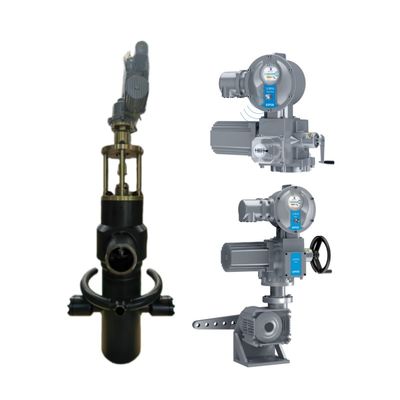

The Bypass Valve with SIPOS 7 Electric Actuator is a smart automation solution for critical bypass applications, integrating a high-performance valve with the intelligent SIPOS 7 actuator. Equipped with predictive diagnostics, soft start/stop, and a high-resolution color display, it offers real-time monitoring of torque, position, and motor temperature. The actuator’s frequency-controlled drive ensures gentle valve operation, reducing wear and cavitation. With native support for Profibus DP, Modbus, and Ethernet/IP, it enables Industry 4.0 connectivity. Perfect for power generation, desalination, and chemical plants requiring fail-safe, energy-efficient flow control with minimal downtime.
| Parameter | Specification |
|---|---|
| Actuator | SIPOS 7 Flash / Eco |
| Torque | 50 to 25,000 Nm |
| Positioning Resolution | 0.1% (12-bit encoder) |
| Speed Control | Frequency inverter (0.1–100%) |
| Power | 3-phase 380–480 VAC |
| Communication | Profibus DP, Modbus, Ethernet/IP |
| Protection | IP68 |
| Ambient Temperature | -30°C to +70°C |
| Valve DN | 50 to 1200 mm |
| Safety | SIL 2, ATEX Zone 1/21 |
Yes, monitors torque, vibration, and temperature trends.
Yes, with Ethernet/IP or Profinet modules.
Yes, with optional battery/capacitor ESD.
Yes, soft start/stop via speed control.
Yes, IP68 rated for permanent submersion.
Contact our team for inquiries about the Bypass Valve with SIPOS 7, pricing, or to schedule a demo:
