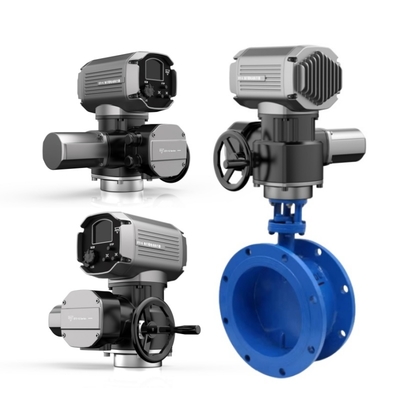

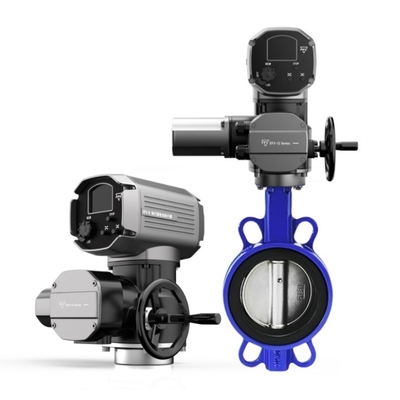

The FFC EFX-Q Series angular travel electric actuator is a cutting-edge solution designed for precise ball valve automation in petroleum and petrochemical industries. Combining intelligent control technology with robust explosion-proof construction, this actuator delivers reliable quarter-turn (0°-90°) operation in harsh environments. Its advanced angular travel design ensures seamless integration with ball valves, enabling accurate flow regulation for critical oil & gas applications.
| Parameter | Specification |
|---|---|
| Power Supply | AC24/110/220/380V, DC24V |
| Output Torque | 100N·m - 3000N·m (model-dependent) |
| Control Signal | 4-20mA DC, 0-10V DC, Modbus RTU |
| Protection Grade | IP66 (Explosion-proof: Ex d IIB T4) |
| Operating Temperature | -30°C to 70°C |
| Rotation Angle | 0°-90° (adjustable via software) |
| Communication | RS485/HART Protocol |
| Housing Material | Aluminum Alloy + Stainless Steel |
Angular Travel Precision: ±0.5° positioning accuracy for critical ball valve control.
Explosion-Proof Certification: ATEX/IECEx approved for Zone 1 & 2 hazardous areas.
Intelligent Diagnostics: Real-time monitoring of torque, temperature, and cycle count.
Multi-Protocol Support: Compatible with HART, Modbus RTU, and industrial automation systems.
Corrosion Resistance: Stainless steel components for offshore/petrochemical environments.
Emergency Manual Override: Mechanical handwheel for safe operation during power failure.
Petroleum Refineries: Automated control of ball valves in crude oil processing units.
Offshore Platforms: Reliable valve actuation in marine/saltwater environments.
Gas Storage Facilities: Precise flow regulation for high-pressure gas systems.
Chemical Plants: Safe operation in corrosive fluid handling processes.
Pipeline Networks: Remote monitoring and control of cross-country oil/gas pipelines.
